Vehicle Detector
>
Wireless Desktop Remote Controller 3V For Heavy Duty Barrier Gates

Wireless Desktop Remote Controller 3V For Heavy Duty Barrier Gates

Product Details:
Place of Origin: China
Brand Name: JWSY
Model Number: GW-TX43-3D3
Detail Information
Place of Origin:
China
Brand Name:
JWSY
Model Number:
GW-TX43-3D3
Device Name:
Desktop Remote Controller
Working Frequency:
315~433.92 MHz
Modulation Frequency:
2 KHZ
Modulation Mode:
ASK
Highlight:

High Light

Highlight:

Wireless Desktop Remote Controller

,

Barrier Gates Desktop Remote Controller

,

Desktop Remote Controller 3V

Trading Information
Minimum Order Quantity:
10 units
Packaging Details:
Carton packaging
Delivery Time:
10 Work days
Payment Terms:
Payment before delivery
Supply Ability:
10000 units
Product Description

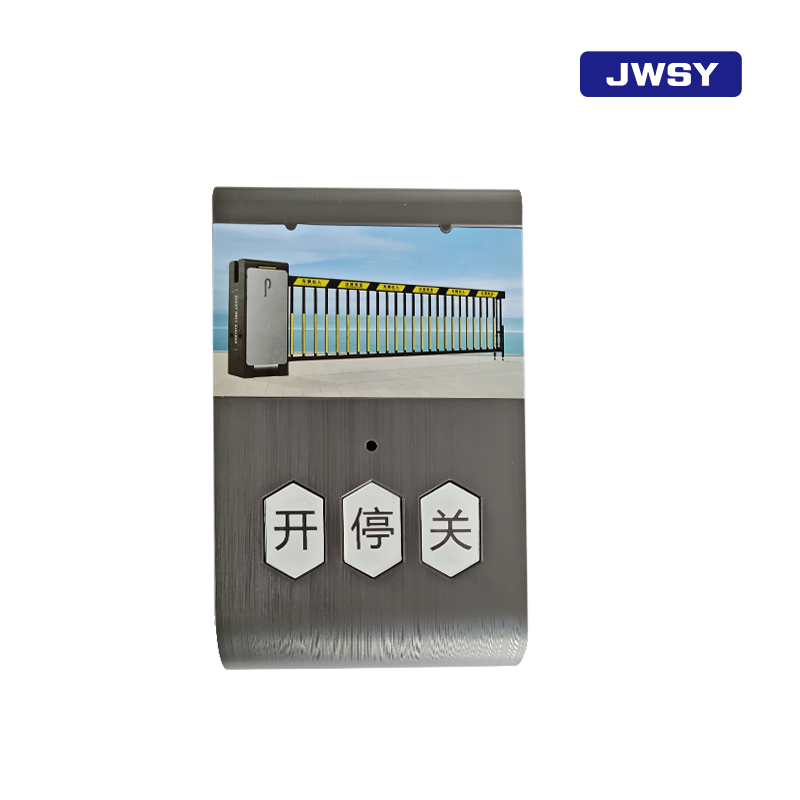

▋Wireless Desktop Remote Controller for Heavy-Duty Barrier Gates

This wireless desktop remote controller for heavy-duty barrier gates is an industrial-grade remote control device tailor-made for heavy-duty straight arm barriers, palisade barriers and crank arm barriers in the barrier gate industry. It is suitable for high-frequency and high-load application scenarios of heavy-duty barriers such as property parks, ports and wharves, logistics parks and industrial parks. Adopting AC 220V direct power supply design and matching with high-power stable RF module, it breaks through the transmission distance and anti-interference limitations of ordinary remote controllers. It also features anti-misoperation, multi-device cloning and harsh environment resistance, perfectly matching the high-load and high-stability control requirements of heavy-duty barrier gates, and realizing precise wireless control of opening, closing and stopping of heavy-duty barrier gates.

▋Technical Specifications

Product Model GW-TX43-3D3
Equipment Name Desktop Remote Controller
Working Frequency 315~433.92 MHz
Modulation Mode ASK
Transmit Power ATM3M dbm
Modulation Frequency 2 KHZ
DC supply Voltage 3V
Current Consumption 20-25 mA
Working Voltage 8~12.8 V
Working Temperature Range -20 ~+60 ℃
Storage Temperature Range -20~+80 ℃



▋Product Features

  1. Equipped with enhanced high-gain antenna and high-power RF module, supporting 315/433MHz mainstream industrial frequency bands. The transmission distance can reach 80-150 meters in an open environment, and it can still control stably after penetrating walls/factory building walls, meeting the long-distance control needs of heavy-duty barriers in large parks.
  2. Adopting AC 220V±10% direct power supply design, built-in anti-surge, over-voltage and over-current protection modules, no battery replacement required. It completely solves the problem of control failure of heavy-duty barriers caused by low battery of ordinary remotes, and is suitable for 24-hour high-frequency start-stop scenarios of heavy-duty barriers in logistics/ports and other places.
  3. Exclusive key combination for code clearing/cloning, single key only realizes the core functions of opening/closing/stopping, preventing accidental start-stop of heavy-duty barriers caused by misoperation of non-staff. With the foolproof key design, it effectively avoids mispressing in industrial scenarios and ensures the operation of heavy-duty barriers and the safety of on-site personnel and vehicles.
