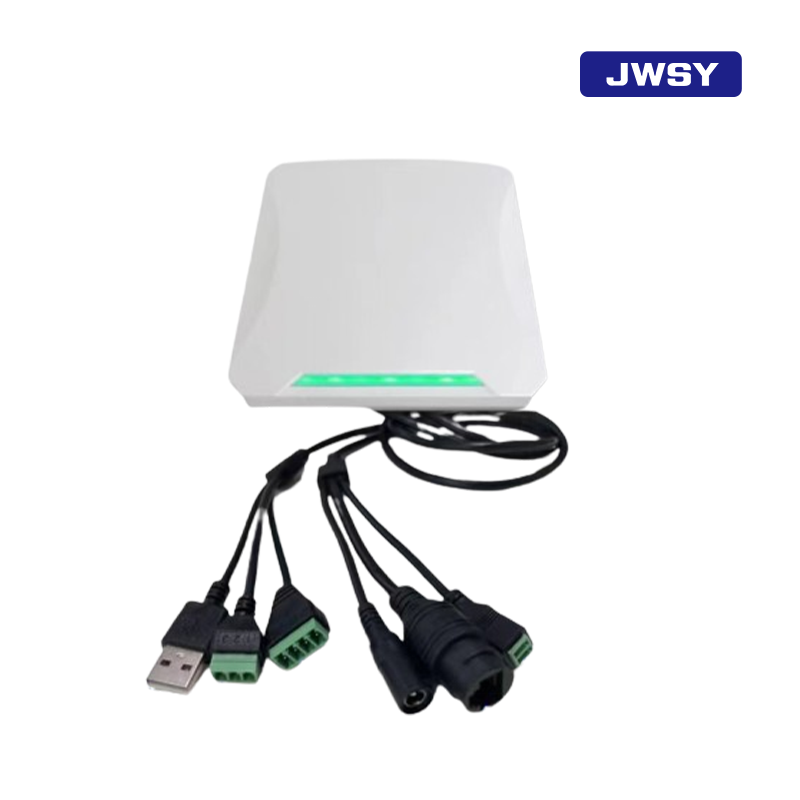

AD-SG220 915M Long Distance Integrated Reader Low Power Waterproof
| Place of Origin | China |
| Brand Name | JWSY |
| Model Number | AD-SG220 |
Long Distance Integrated Reader
,Integrated Reader Low Power
,Integrated Reader Waterproof
AD-SG220 is a fixed and compact reader, compatible with ISO 18000-6C standards, its working frequency of 860MHz ~ 960MHz, compact appearance, excellent reading and writing performance. The reader can be widely used in warehouse logistics management, retail logistics center management, enterprise transportation management, automatic production line management and other fields.
▋Technical Specifications
|
Functional features |
||
|
System parameters: |
ARM7+UHF |
|
|
Working frequency: |
National standard(920～925MHz) |
|
|
|
US standard(902～928MHz) |
|
|
|
European standard(865～868MHz) |
|
|
|
Other multinational frequency standards (customized) |
|
|
Identification distance: |
0-20m |
|
|
Group read performance: |
>200 labels |
|
|
Label protocol: |
Support ISO18000-6C (EPC GEN2) protocol electronic tags |
|
|
Frequency hopping mode: |
Wide spectrum frequency hopping (FHSS) or fixed frequency, can be set by software; |
|
|
Way of working: |
|
|
|
Rf Power: |
0-33dBm (power software adjustable) |
|
|
Antenna parameters: |
9dBi Linearly Polarized Antenna (built-in) |
|
|
Supported interfaces: |
|
|
|
Operating voltage: |
9-12V |
|
|
Recognition Tips: |
Beep or LED flash |
|
|
Power consumption: |
<12W |
|
|
Work environment |
||
|
Operating temperature: |
－20℃ ～ +70℃(Beyond the scope need to customize) |
|
|
Working humidity: |
20％ ～ 95％(no condensation) |
|
|
Storage temperature: |
－40℃ ～ +125℃ |
|
|
Physical parameters |
||
|
Shape/Package size: |
260*260*70MM / 355*260*80MM |
|
|
Net weight: |
1500G |
|
|
Gross weight: |
1800KG |
|
|
Other Notes |
||
|
Secondary development: |
Dynamic link library (DLL) and demo software source code are provided to support secondary development. |
|
|
Note: |
The recognition distance and group reading performance need to depend on the tag performance and the specific application scenario, and can be customized according to requirements |
|
▋Product features
-
Adopt high-performance modules;
Low power, stable and reliable read/write distance;
Fast data read rate; Read more than 200 tags per second
Tag wake-up recognition;
Multi-region multi-label reading;
Multi-protocol compatibility;
Waterproof appearance design;
