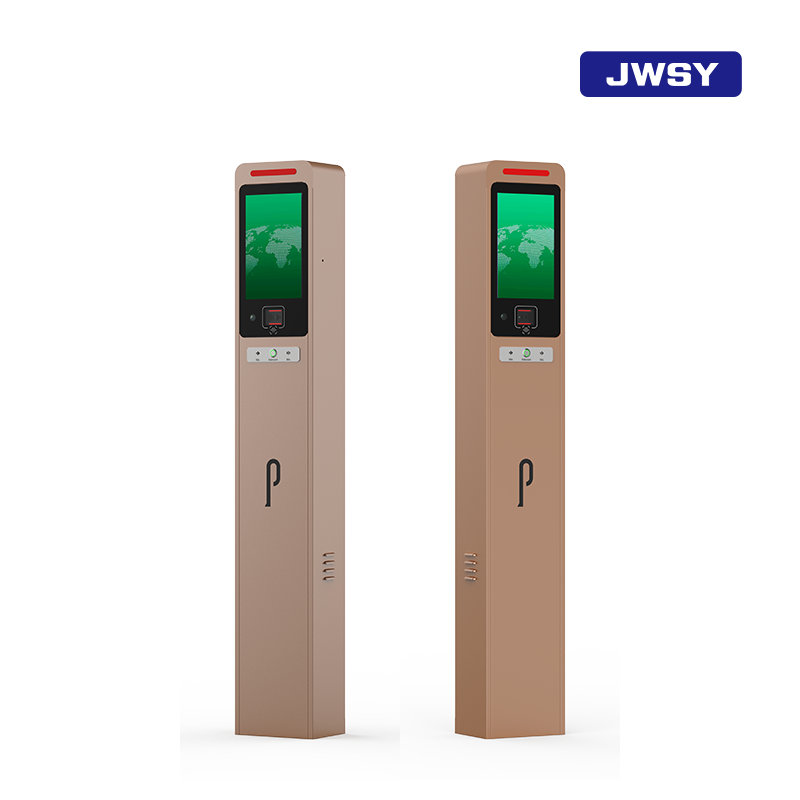

IP54 Compact Parking Access Control Channel Machine For Parking Lot Exit
IP54 Compact Parking Access Control Channel Machine For Parking Lot Exit
  • IP54 Compact Parking Access Control Channel Machine For Parking Lot Exit
  • IP54 Compact Parking Access Control Channel Machine For Parking Lot Exit
  • IP54 Compact Parking Access Control Channel Machine For Parking Lot Exit
  • IP54 Compact Parking Access Control Channel Machine For Parking Lot Exit

IP54 Compact Parking Access Control Channel Machine For Parking Lot Exit

Product Details:
Place of Origin: China
Brand Name: JWSY
Model Number: JWS-TO8
Detail Information
Place of Origin:
China
Brand Name:
JWSY
Model Number:
JWS-TO8
Device Name:
Compact Channel Machine
Chassis Dimensions:
1450x230x165mm
Color Selection:
Silver/Gold/Grey
Screen Resolution:
1280×800
Screen Selection:
12.1-inch LCD Screen
Rated Power:
60W
Device Name:
Compact Channel Machine
Chassis Dimensions:
1450x230x165mm
Color Selection:
Silver/Gold/Grey
Screen Resolution:
1280×800
Screen Selection:
12.1-inch LCD Screen
Rated Power:
60W
Device Name:
Compact Channel Machine
Chassis Dimensions:
1450x230x165mm
Screen Resolution:
1280×800
Screen Selection:
12.1-inch LCD Screen
Color Selection:
Silver/Gold/Grey
Rated Power:
60W
Highlight:

High Light

Highlight:

IP54 Parking Access Control

,

Compact Parking Access Control

,

Parking Access Control Channel Machine

Trading Information
Minimum Order Quantity:
10 units
Packaging Details:
Carton packaging
Delivery Time:
10 Work days
Payment Terms:
Payment before delivery
Supply Ability:
10000 units
Product Description
▋Compact  Channel Machine Exit

The unattended vehicle payment lane barrier utilizes high-definition license plate recognition, contactless payment, and remote monitoring technologies to achieve a fully automated "ticket-free, stop-free, and staff-free" vehicle access management process. It significantly improves parking lot traffic efficiency and reduces labor costs, making it suitable for various parking scenarios such as commercial complexes, office buildings, industrial parks, and residential communities.

▋Technical Specifications

Product Model JWS-TO6
Device Name Compact Channel Machine   Exit
power supply voltage DC12V
Screen selection 12.1-inch LCD Screen
Color Selection Silver/Gold/Grey
Protection level IP54
rated power 60W
contact method TCP/IP
camera lens 6mm fixed focus lens/optional 4mm fixed focus lens
voice broadcast standard
Operating Temperature -30°C-80°C
maximum brightness 1000cd/m2
screen resolution 1280×800‌
Screen interface Dual channel LVDS
Chassis thickness 1.2mm
spray thickness 60-120um
Chassis decoration LED light have
Box salt spray test time 72 hours
Accessories List 4 * 12 × 150 expansion screw



▋Product Features

Unattended Payment with Multiple Payment Methods

Supports various payment methods including WeChat Pay, Alipay contactless payment, ETC, license plate payment, and QR code payment. The system automatically deducts fees when the vehicle exits, eliminating the need for manual intervention, reducing queuing congestion, and improving the overall user experience.

Intelligent Barrier Linkage for Safety and Reliability

The system integrates with barriers, radar, ground sensors, and other equipment to provide vehicle detection, anti-crush protection, and abnormal situation alarms. It supports obstacle rebound and vehicle detention detection, effectively avoiding safety risks such as vehicle damage and scratches.

Cloud Management Platform for Convenient Remote Monitoring

Equipped with a cloud-based management platform, it allows real-time viewing of parking lot data, access records, charging reports, and device status. It supports remote gate opening, remote intercom, and push notifications for abnormal events, making management more efficient and intelligent.

All-Weather Stable Operation in Complex Environments

Built with industrial-grade hardware, the device features waterproof, dustproof, and anti-interference capabilities. It operates reliably in harsh conditions such as high temperatures, rain, snow, and sandstorms, ensuring uninterrupted operation of the parking lot throughout the year.
