| Place of Origin: | China |
| Brand Name: | JWSY |
| Model Number: | FS1002I |

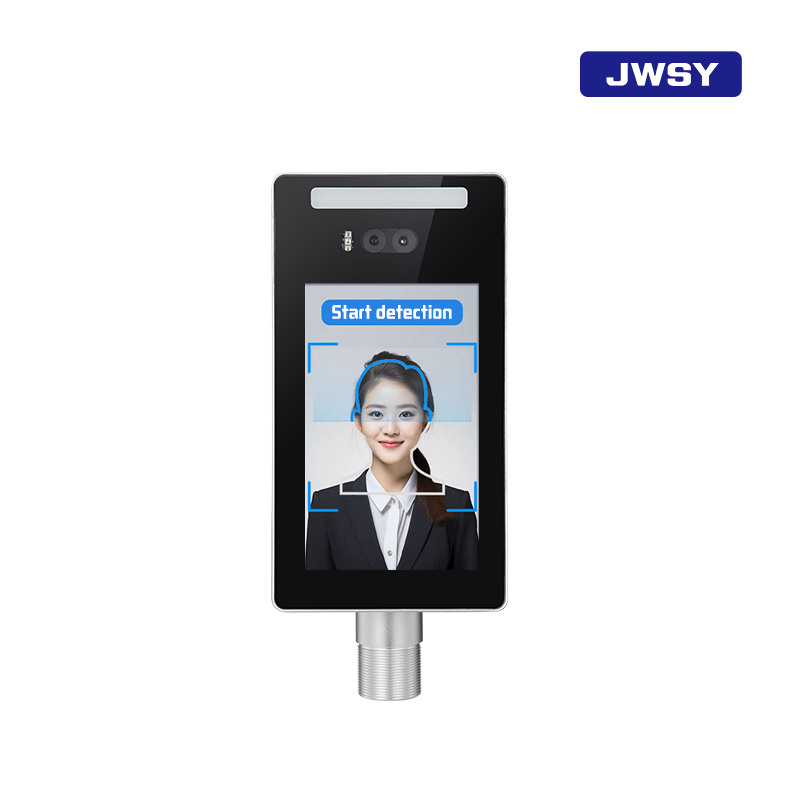

The 7-inch Binocular Live Face Recognition Terminal is a high-performance access control device designed for reliable and accurate identity verification. Equipped with dual‑camera live detection technology and advanced face recognition algorithms, it provides fast, secure, and stable performance even in harsh lighting conditions. The terminal supports a wide range of protocols and interfaces, making it highly compatible with various access control systems, turnstiles, and security platforms. It is ideal for applications such as pedestrian turnstiles, smart gate posts, and public security identity verification systems.
| Model | FS1002I |
| Hardware | |
| Processor | Dual-Core ARM Cortex-A7, @1.0GHz |
| Operating System | Linux Operating System |
| Storage | 8GB EMMC |
| Camera | Binocular, 2.1 Megapixels effective, 1920*1080 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Lens | 6mm |
| WIFI Module | Optional, IEEE 802.11b/g/n standard, supports 2.4GHz band, speed range 1Mbps–150Mbps |
| Bluetooth Module | Optional, 8DPSK, π/4DQPSK, GFSK, speed range 1Mbps–2.3Mbps |
| Speaker | Standard, voice playback content customizable |
| Performance | |
| Recognition Height | 1.2~2.2 meters, angle adjustable |
| Recognition Distance | 0.5~1.5 meters, variable depending on lens |
| Face Angle | ±30° left/right, ±30° up/down |
| Recognition Time | Less than 0.5 seconds |
| Storage Capacity | 60,000 capture records |
| Face Capacity | 24,000 faces |
| Interface | |
| Switch Output | 1 channel switch output; other GPIO ports can be customized |
| Network Interface | 1 RJ45 10M/100M auto-sensing Ethernet port, Gigabit port customizable |
| Wiegand Interface | 1 Wiegand input, 1 Wiegand output |
| USB Interface | 1 USB interface (device mode) |
| Communication Interface | 1 RS485 interface |
| Camera Parameters | |
| Camera | Binocular camera, visible light + near-infrared, supports liveness detection |
| Effective Pixels | 2.1 Megapixels effective, 1920*1080 |
| Minimum Illumination | Color 0.01 Lux @F1.2 (ICR); B/W 0.001 Lux @F1.2 (ICR) |
| Signal-to-Noise Ratio | ≥50 dB (AGC OFF) |
| Function | |
| Web Configuration | Supported |
| Remote Device Upgrade | Supported |
| Deployment Method | Supports public network / LAN deployment |
| General Parameters | |
| Operating Temperature | -20℃ - +60℃ |
| Operating Humidity | 0～90% RH, no condensation |
| Salt Spray Rating | Rp6 or above |
| Anti-static | Contact ±6kV, Air ±8kV |
| Power Supply | DC12V/2A |
| Anti-riot Rating | IK06 |
| Protection Rating | IP66 |
| Device Power | 10W (MAX) |
| Device Dimensions | 128 (W) * 28 (D) * 240 (H) mm |
| Column Mounting Hole Diameter | 36 mm |
| Screen Specifications | 7-inch IPS HD screen |
| Device Weight | 1.5 kg |
