OEM / ODM Gray Warrior Series Curved Arm Bar Parking Lot Barrier Gate
  • OEM / ODM Gray Warrior Series Curved Arm Bar Parking Lot Barrier Gate
  • OEM / ODM Gray Warrior Series Curved Arm Bar Parking Lot Barrier Gate
  • OEM / ODM Gray Warrior Series Curved Arm Bar Parking Lot Barrier Gate

OEM / ODM Gray Warrior Series Curved Arm Bar Parking Lot Barrier Gate

Product Details:
Place of Origin: China
Brand Name: JWSY
Model Number: J-DZ201
Detail Information
Place of Origin:
China
Brand Name:
JWSY
Model Number:
J-DZ201
Device Name:
OEM / ODM Gray Warrior Series Curved Arm Bar Parking Lot Barrier Gate
Chassis Dimensions:
985×340×280mm
Color Selection:
Silver/Gold/Grey
Power Supply Voltage:
DC24V
Service Life:
≥ 3 Million Times
Landing Speed:
1.5s-6s/3-6s Adjustable
Rated Power:
120W
Highlight:

High Light

Highlight:

oem parking gate barrier

,

oem parking lot barrier gate

,

odm parking gate barrier

Trading Information
Minimum Order Quantity:
10 units
Packaging Details:
Carton packaging
Delivery Time:
10 Work days
Payment Terms:
Payment before delivery
Supply Ability:
10000 units
Product Description

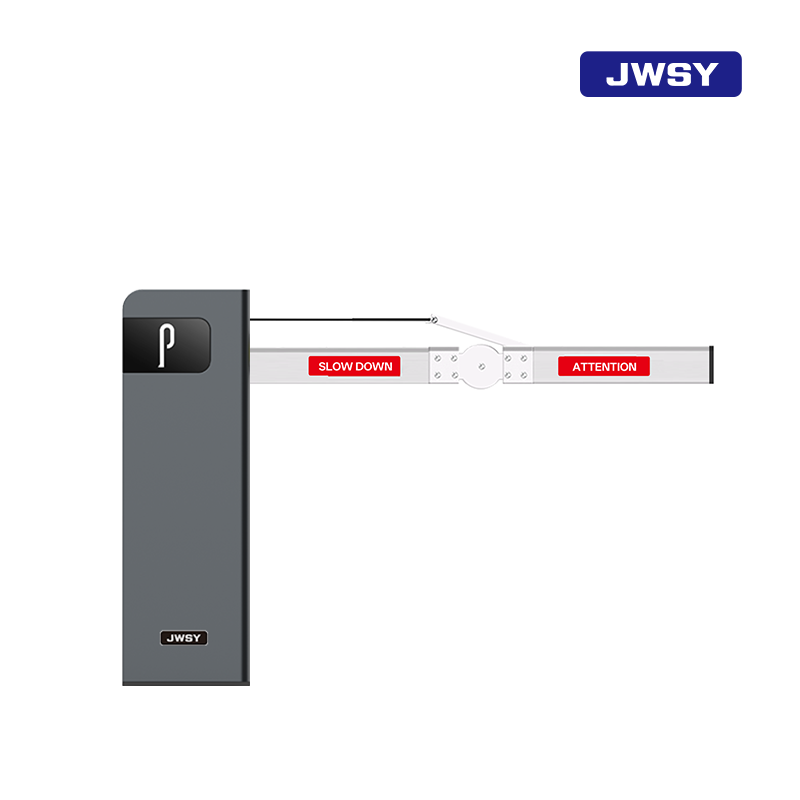

▋Gray Warrior Series Curved Arm Bar Parking Lot Barrier Gate

The Gray Warrior Series Curved Arm Bar Parking Lot Barrier Gate is a highly adaptable intelligent control device specially built for various commercial and civil parking lots. Combining a high-grade matte gray body with a multi-section curved arm structure, it integrates industrial texture and practical performance, becoming an optimal solution for parking lot entrance and exit control. The whole machine is made of high-strength cold-rolled alloy material, processed with matte frosted and multi-layer anti-rust and anti-corrosion technology. The gray body is low-key and calm, dirt-resistant and easy to clean, adapting to the environmental styles of various parking lots such as office buildings, industrial parks, communities and supermarkets, and is not afraid of complex use scenarios such as outdoor sun and rain, dust and oil stains.

▋Technical Specifications

Product Model J-D2101
Device Name OEM / ODM Gray Warrior Series Curved Arm Bar Parking Lot Barrier Gate
power supply voltage DC24V
Landing speed 1.5s-6s/3-6s adjustable
Maximum rod length 6m straight pole, 5m fence railing, 5m bent arm pole
Color Selection Silver/Gold/Grey
Protection level IP54
rated power 120w
service life ≥ 3 million times
Rod material 100mm × 45mm aluminum alloy material
Operating Temperature -30°C-75°C
Chassis thickness 1.5mm
spray thickness 60-120um
Chassis decoration LED light have
Box salt spray test time 72 hours
Optional interface 485, Bluetooth, TTL, TCP/IP, 4G, etc
Support accessories Infrared radiation, radar, ground sensing, traffic lights, sound and light alarms, etc
anti-smash Resistance rebound, delayed pole drop, fleet mode, etc
Remote control distance/encryption ≥ 50m/Yes (open and unobstructed)
Accessories List 2 * Remote Control, 2 * Key, 2 * Head M10 × 70 Screw, 4 * 12 × 150 Expansion Screw
Chassis dimensions 985×320×235mm
Box packaging size/weight 1055×355×345mm/34.8KG


▋Product Features


  1. Adopting a matte gray appearance design, it is simple and calm, highly recognizable, fits well with various parking lot environments, and has both industrial aesthetics and strong environmental adaptability.
  2. Equipped with a multi-section curved arm bar, it features flexible opening and closing and smooth operation, which effectively saves installation space and is specially suitable for parking lots with height restriction, narrow entrance and exit and other special scenarios.
  3. Made of high-strength alloy material with professional anti-rust and anti-corrosion treatment, it is resistant to sun, rain and daily wear, and can run stably for a long time in complex outdoor environments with low maintenance cost.
  4. Equipped with a high-precision intelligent induction system, it realizes automatic lifting and lowering of the barrier with fast response and low noise, and has anti-crushing and anti-collision functions to ensure the safety of vehicle passage and equipment.
