| Place of Origin: | China |
| Brand Name: | JWSY |
| Model Number: | J-F01 |

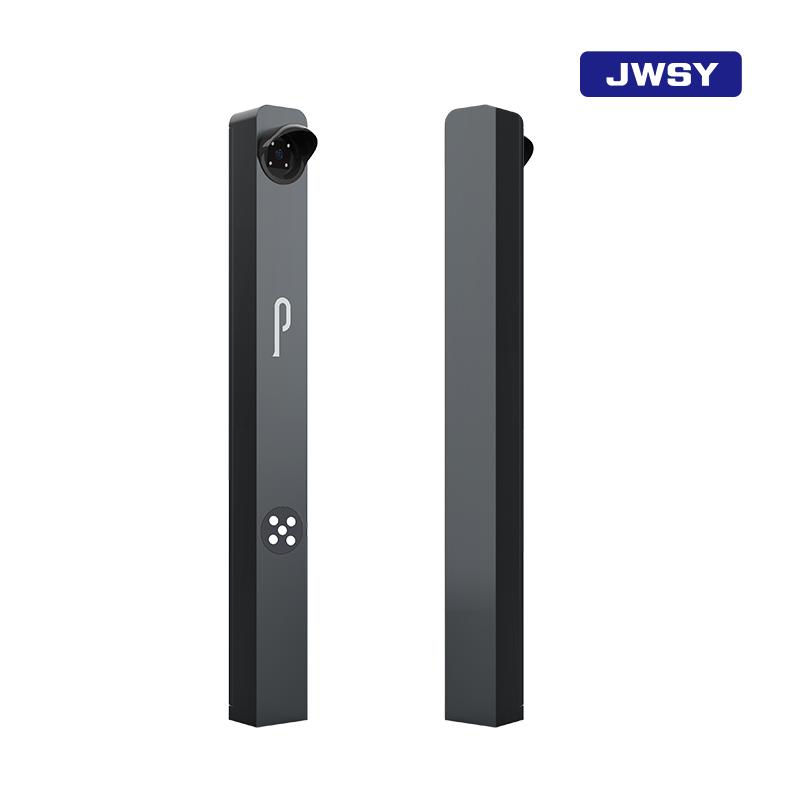

The All-in-One License Plate Recognition Auxiliary Camera Column is specially designed for parking lot access points, integrating auxiliary imaging and structural mounting in one unit. As an effective supplement to the main recognition device, it expands monitoring coverage and improves the collection of vehicle and license plate information. Adapted for long-term outdoor operation, the equipment features optimized imaging and light-filling design to ensure clear and stable images under variable lighting and weather conditions. It can be seamlessly linked with mainstream LPR main units to enhance overall recognition pass rate and traffic efficiency, suitable for access control scenarios including residential quarters, industrial parks, commercial complexes and public parking lots.
▋Technical Specifications
| Product Model | J-F01 |
| Device Name | All-in-One License Plate Recognition Auxiliary Camera Column |
| power supply voltage | DC12V |
| camera pixel | 5 megapixels |
| Screen selection | |
| Color Selection | Silver/Gold/Grey |
| Protection level | IP54 |
| rated power | 60W |
| contact method | TCP/IP |
| camera lens | 6mm fixed focus lens/optional 4mm fixed focus lens |
| sensor | 5MP high-performance CIS |
| license plate recognition rate | ≥99.8% |
| voice broadcast | standard |
| Operating Temperature | -30°C-80°C |
| maximum brightness | 1000cd/m2 |
| screen resolution | |
| Screen interface | |
| Chassis thickness | 1.2mm |
| spray thickness | 60-120um |
| Chassis decoration LED light | have |
| Box salt spray test time | 72 hours |
| Accessories List | 4 * 12 × 150 expansion screw |
| Chassis dimensions | 1260×130×100mm |
| Box packaging size/weight | 1310*358*195mm/16KG |
