| Place of Origin: | China |
| Brand Name: | JWSY |
| Model Number: | J-F01 |

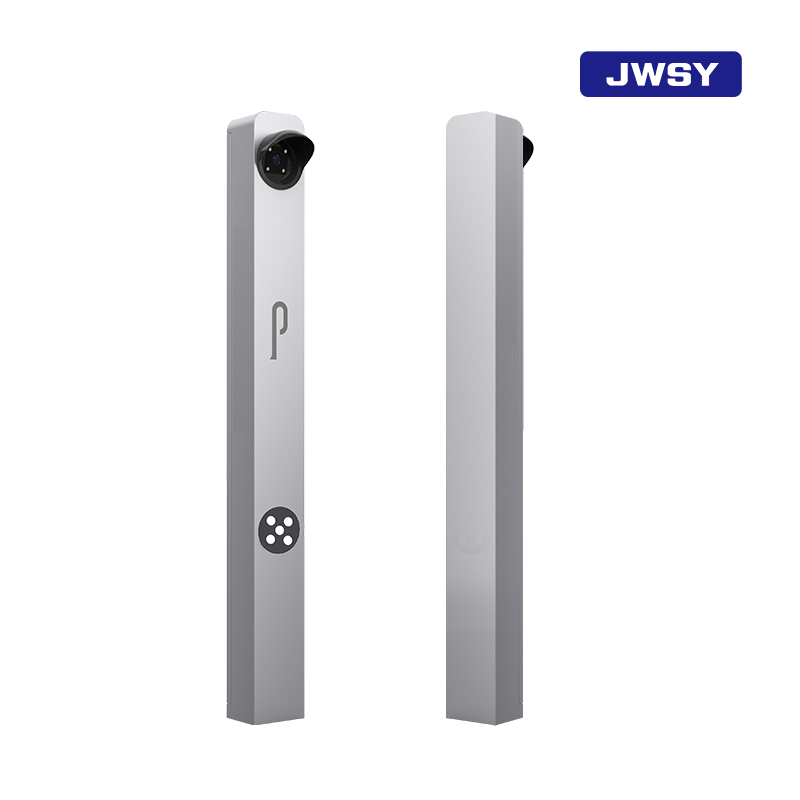

The parking lot license plate recognition camera column auxiliary camera is specially designed for parking access scenarios. As a supplementary device to the main recognition unit, it expands the monitoring field of view, improves vehicle information collection, and enhances recognition reliability in complex situations. Compatible with standard column mounting structures, it can work in conjunction with the Warrior LCD screen license plate recognition machine to stably capture vehicle features and license plate information under strong light, low light, rainy, and nighttime conditions, helping improve overall verification and passage efficiency. It is suitable for access control in residential quarters, industrial parks, commercial complexes and other parking lots.
▋Technical Specifications
| Product Model | J-F01 |
| Device Name | Parking Lot License Plate Recognition Camera Column Auxiliary Camera |
| power supply voltage | DC12V |
| camera pixel | 5 megapixels |
| Screen selection | |
| Color Selection | Silver/Gold/Grey |
| Protection level | IP54 |
| rated power | 60W |
| contact method | TCP/IP |
| camera lens | 6mm fixed focus lens/optional 4mm fixed focus lens |
| sensor | 5MP high-performance CIS |
| license plate recognition rate | ≥99.8% |
| voice broadcast | standard |
| Operating Temperature | -30°C-80°C |
| maximum brightness | 1000cd/m2 |
| screen resolution | |
| Screen interface | |
| Chassis thickness | 1.2mm |
| spray thickness | 60-120um |
| Chassis decoration LED light | have |
| Box salt spray test time | 72 hours |
| Accessories List | 4 * 12 × 150 expansion screw |
| Chassis dimensions | 1260×130×100mm |
| Box packaging size/weight | 1310*358*195mm/16KG |
