Seamless 304 Stainless Steel Pipe Bollards  , Semi Automatic Bollards IP68
  • Seamless 304 Stainless Steel Pipe Bollards  , Semi Automatic Bollards IP68

Seamless 304 Stainless Steel Pipe Bollards  , Semi Automatic Bollards IP68

Place of Origin China
Brand Name JWSY
Model Number J-FZ102
Product Details
Device Name:
Stainless Steel Pipe Bollards
Size:
348 (L) × 83 (W) × 133 (H) Mm
Device Weight:
35 Kg / 65 Kg
Protection Rating (IP):
IP68
Bollard Thickness:
6mm (Customizable)
Highlight:

Seamless Stainless Steel Pipe Bollards

,

304 Stainless Steel Pipe Bollards

,

Semi Automatic Bollards IP68

Payment & Shipping Terms
Minimum Order Quantity
10 units
Packaging Details
Carton packaging
Delivery Time
10 Work days
Payment Terms
Payment before delivery
Supply Ability
10000 units
Product Description

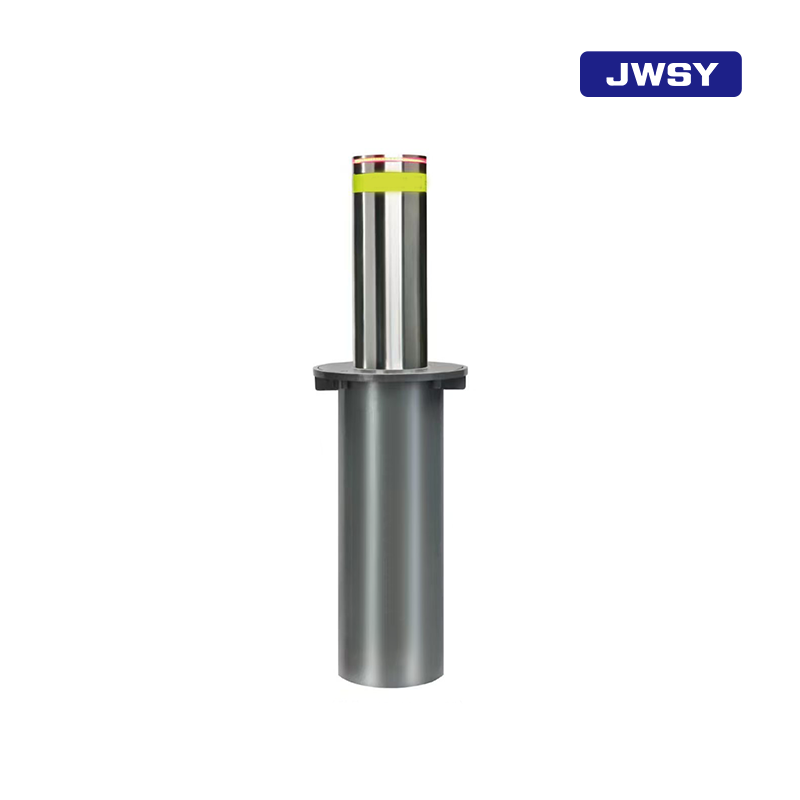

▋304 Stainless Steel Seamless Pipe  Semi-Automatic Bollards
Semi-automatic lifting bollards are driven by built-in gas springs for ascending and assisted manually for descending. They are widely used at vehicle access points with low traffic frequency, such as fire lanes, parks and pedestrian streets. A semi-automatic lifting bollard consists of a bollard body, a flange plate, a lifting guide system, a gas spring, a hexagon socket lock structure and other components. When used together with fully automatic lifting bollards of the same appearance, they feature cost efficiency, stability, safety, reliability and practicality, helping to reduce overall costs.
▋Technical Specifications
Bollard Height 600mm(customlzable)
Bollard Diameter 219mm (Customizable)
Bollard Thickness 6mm (Customizable)
Bollard Material 304# Stainless Steel Seamless Pipe
Embedded Barrel Diameter p325mm
Embedded Barrel Specs Height: 800mm, Thickness: 3.0mm
Protection Grade IP68
Operating Temperature -30°C~ 55°C
Drive System Gas Spring Drive
Warning Sign Ultra-bright LED Light & 3M Reflective Film
Traffic Pressure Resistance ≥80T
Anti-corrosion Treatment Hot-dip Galvanizing + Zinc-rich Paint Coating
▋Product Features

Ascent: Turn the key, the bollard will rise automatically and lock in position.



Descent: Turn the key, apply pressure to the top of the bollard, and it will lower back to ground level and lock automatically.
