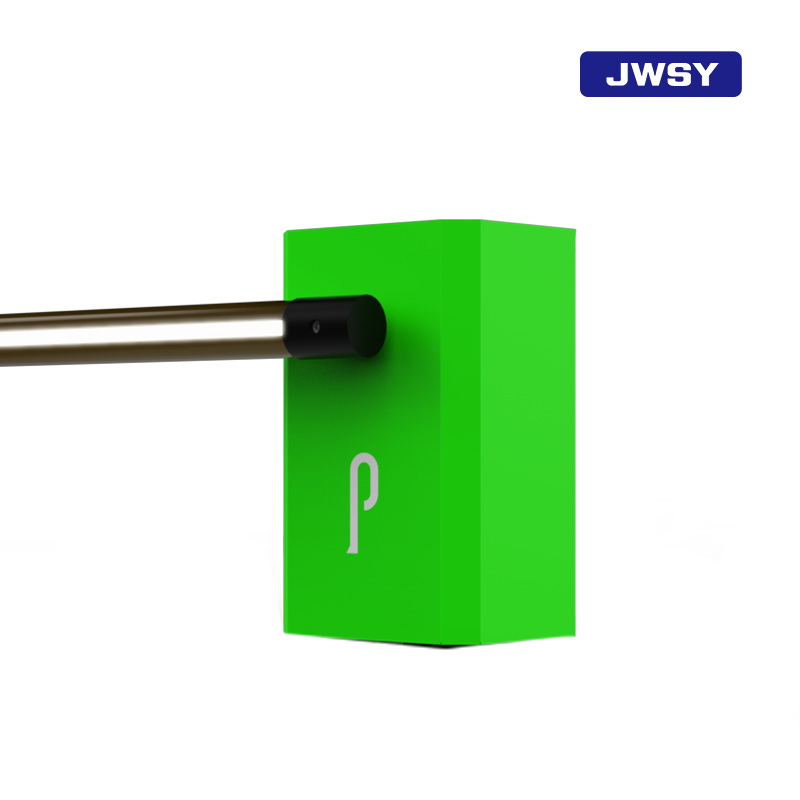

OEM ODM Green Wall-mounted Parking Space Barrier For VIP Parking Management
|
OEM ODM Green Wall-mounted Parking Space Barrier For VIP Parking Management
| Place of Origin | China |
| Brand Name | JWSY |
| Model Number | J-CW701 |
Product Details
Device Name:
Parking Space Management Cloud Barrier
Chassis Dimensions:
985×130×140mm
Color Selection:
Green /Orange
Power Supply Voltage:
DC24V+10%
Service Life:
≥ 3 Million Times
Landing Speed:
2-6s Adjustable
Rated Power:
60W
Maximum Rod Length:
2m
Highlight:
Green Parking Barrier Gate
,Access Management Parking Barrier Gate
,ODM Automatic Parking Lot Gates
Payment & Shipping Terms
Minimum Order Quantity
10 units
Packaging Details
Carton packaging
Delivery Time
10 Work days
Payment Terms
Payment before delivery
Supply Ability
10000 units
Product Description
OEM / ODM Parking Space Barrier Gate With Automatic Control System
The J-CW701 Parking Space Management Cloud Barrier is a high-performance intelligent device designed for modern parking lot management. Featuring a compact chassis and robust construction, this barrier gate provides reliable vehicle access control for residential communities, commercial parks, and various parking scenarios.
Compact Design & Construction
Built with a compact 300*180*140mm chassis and 1.5mm thick sheet metal for solid structure, this parking barrier gate supports DC24V±10% power supply with 10A rated/peak current and 60W motor power. It accommodates maximum rod lengths of 2m and is available in green or orange appearance options.
Technical Specifications
| Product Model | J-CW701 |
| Device Name | Parking Space Management Cloud Barrier |
| Chassis Dimensions | 300x180x140 mm (WxHxL) |
| Power Supply | DC24V±10% |
| Sheet Metal Thickness | 1.5mm |
| Maximum Rod Length | 2m |
| Color Options | Green / Orange |
| Rated/Peak Current | 10A |
| Motor Power | 60W |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | 90% (No Condensation) |
| Insulation Class | F |
| Protection Class | IP54 |
Advanced Features
Creates innovative parking management mode, eliminating mechanical lock damage issues
VIP user support with real-time license plate display for premium experience
Automatic locking for new energy parking spaces to prevent unauthorized occupation
QR code quick access and VIP signage for simplified operation
Enhanced safety with anti-collision radar, emergency stop switch, and automatic power-cut unlocking
Safety & Operation Guidelines
Ensure no obstacles block the running path during operation
Do not open chassis door or cover while barrier gate is operating
Internal wiring is pre-configured; connect only AC 220V power to air switch input terminal
Chassis must be grounded with leakage protection switch installed
Keep clear of barrier area during lowering operation
Use hand wheel at motor end for manual operation during power outages
Tension springs are factory-balanced; consult professionals for modifications
Never remove tension spring when brake lever is horizontal
For brake lever replacement, ensure lifting position and power-off state with proper safety procedures
