| Place of Origin: | China |
| Brand Name: | JWSY |
| Model Number: | JWS-D06 |

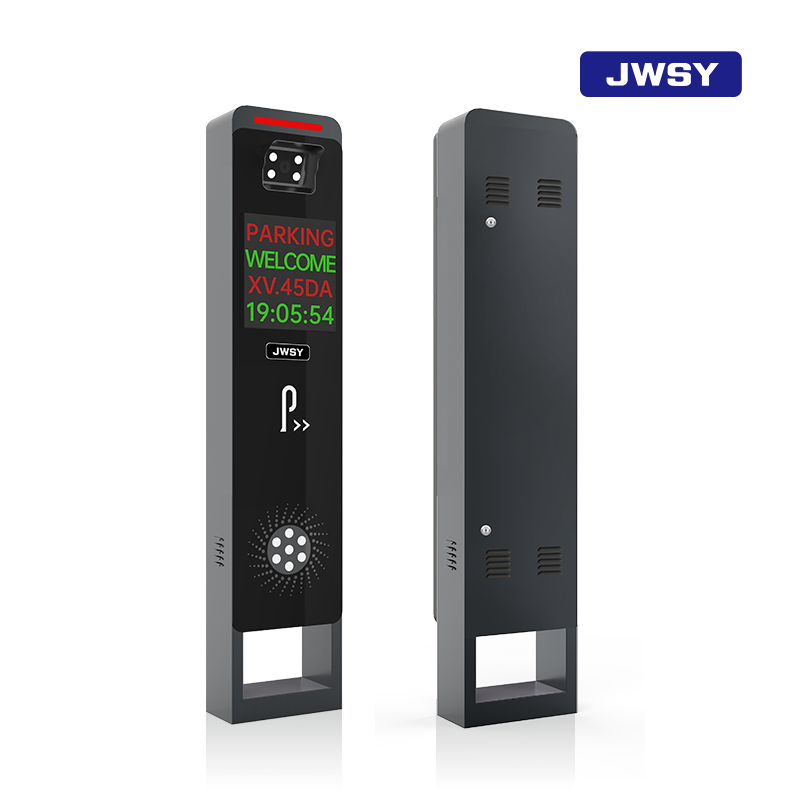

This product is a front-end device that integrates high-definition image acquisition and intelligent AI analysis. It uses a 5-megapixel high-definition lens to accurately capture license plates, and its built-in algorithm can quickly recognize license plate numbers, vehicle models, and colors. Widely used at entrances and exits such as parking lots and highway toll stations to achieve automatic vehicle recognition, seamless passage, and efficient management, it is one of the core components of smart transportation systems.
▋Technical Specifications
| Product Model | JWS-CB06 |
| Device Name | HERO LICENSE PLATE RECOGNITION MACHINE |
| power supply voltage | DC12V |
| camera pixel | 5 megapixels |
| Screen selection | LED screen/LED screen |
| Color Selection | Silver/Gold/Grey |
| Protection level | IP54 |
| rated power | 60W |
| contact method | TCP/IP |
| camera lens | 6mm fixed focus lens/optional 4mm fixed focus lens |
| sensor | 5MP high-performance CIS |
| license plate recognition rate | ≥99.8% |
| voice broadcast | standard |
| Operating Temperature | -30°C-80°C |
| screen resolution | 255*255 |
| Chassis thickness | 1.2mm |
| spray thickness | 60-120um |
| Chassis decoration LED light | have |
| Box salt spray test time | 72 hours |
| Accessories List | 4 * 12 × 150 expansion screw |
| Chassis dimensions | 1450×350×150mm |
| Box packaging size/weight | 1490×207×345mm |
▋Product Features
1. Diversified electronic payments
Seven kinds of electronic payment are supported, including WeChat, Alipay, CCB, CMB, ICBC, ABC and BOC, and WeChat, Alipay, CCB, CMB, ICBC, ABC, BOC ETC, 9 types of contactless payments, including UnionPay; Of course, the diversified electronic payment mentioned here also includes a variety of payment methods, such as on-site code scanning prepayment, official account payment, and export code scanning payment.
2. Easy installation and debugging
JWS-CB06 is highly integrated and has simple wiring. When installing the software, the MySQL database will be automatically installed, saving time for on-site database installation and avoiding database installation difficulties, making it more convenient and efficient.
3. Humanized voice prompts, synchronized device screen display bidirectional guidance
The JWS-CB06-LED device adopts a red top and green bottom module display screen, with live voice broadcasting and humanized voice feedback
Display and synchronize the device screen for bidirectional guidance, allowing car owners to receive prompt information more intuitively. Simultaneously display screen support
Customize the loading of advertising information.
