| Place of Origin: | China |
| Brand Name: | JWSY |
| Model Number: | JWS-DC601 |

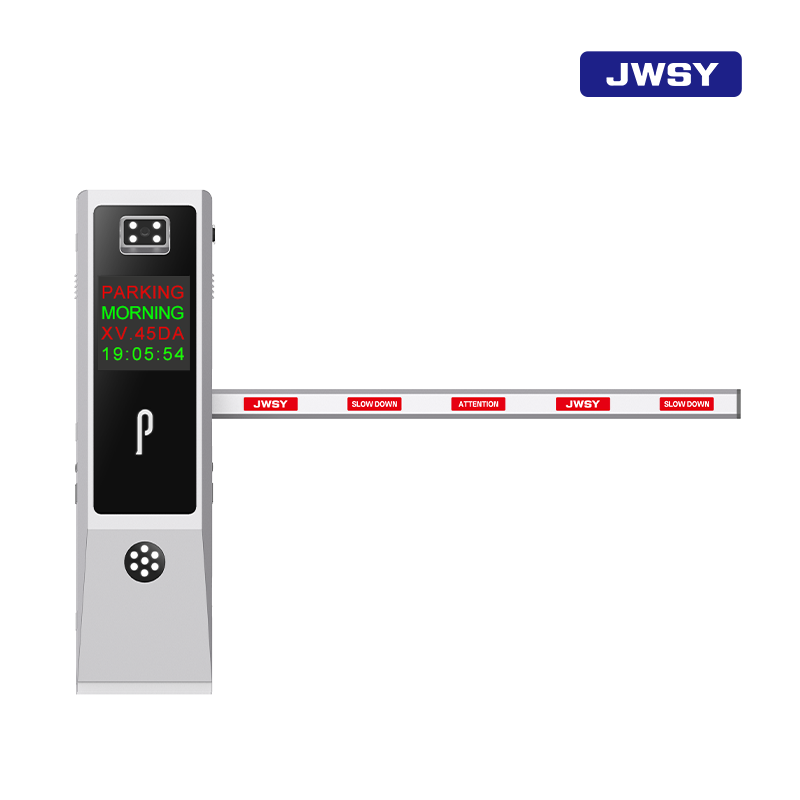

As a core device for intelligent entrance and exit control, the all-in-one barrier gate with license plate recognition fully integrates high-definition license plate recognition modules, intelligent barrier gate drive systems and data management modules. It abandons the traditional split-type installation mode of "barrier gate + recognition camera", and relies on its integrated design to create an efficient, convenient and accurate unattended access solution for scenarios such as industrial parks, residential communities and commercial underground garages.
▋Technical Specifications
| Product Model | JWS-DC601 |
| Device Name | Integrated Barrier Gate & License Plate Recognition Machine |
| power supply voltage | DC24V |
| Landing speed | 1.5s-6s/3-6s adjustable |
| Maximum rod length | 6m straight pole, 5m fence railing, 5m bent arm pole |
| Color Selection | Silver/Gold/Grey |
| Protection level | IP54 |
| rated power | 120w |
| service life | ≥ 3 million times |
| Rod material | 100mm × 45mm aluminum alloy material |
| Operating Temperature | -30°C-75°C |
| Chassis thickness | 1.5mm |
| spray thickness | 60-120um |
| camera pixel | 5 megapixels |
| Screen selection | LCD Screen |
| Color Selection | Silver/Gold/Grey |
| Protection level | IP54 |
| contact method | TCP/IP |
| camera lens | 6mm fixed focus lens/optional 4mm fixed focus lens |
| sensor | 5MP high-performance CIS |
| license plate recognition rate | ≥99.8% |
| voice broadcast | standard |
| Operating Temperature | -30°C-80°C |
| screen resolution | 255*255 |
| Chassis decoration LED light | have |
| Box salt spray test time | 72 hours |
| Optional interface | 485, Bluetooth, TTL, TCP/IP, 4G, etc |
| Support accessories | Infrared radiation, radar, ground sensing, traffic lights, sound and light alarms, etc |
| anti-smash | Resistance rebound, delayed pole drop, fleet mode, etc |
| Remote control distance/encryption | ≥ 50m/Yes (open and unobstructed) |
| Accessories List | 2 * Remote Control, 2 * Key, 2 * Head M10 × 70 Screw, 4 * 12 × 150 Expansion Screw |
| Chassis dimensions | 1450x390x310mm |
| Box packaging size/weight | 1520×450×410mm/66KG |
