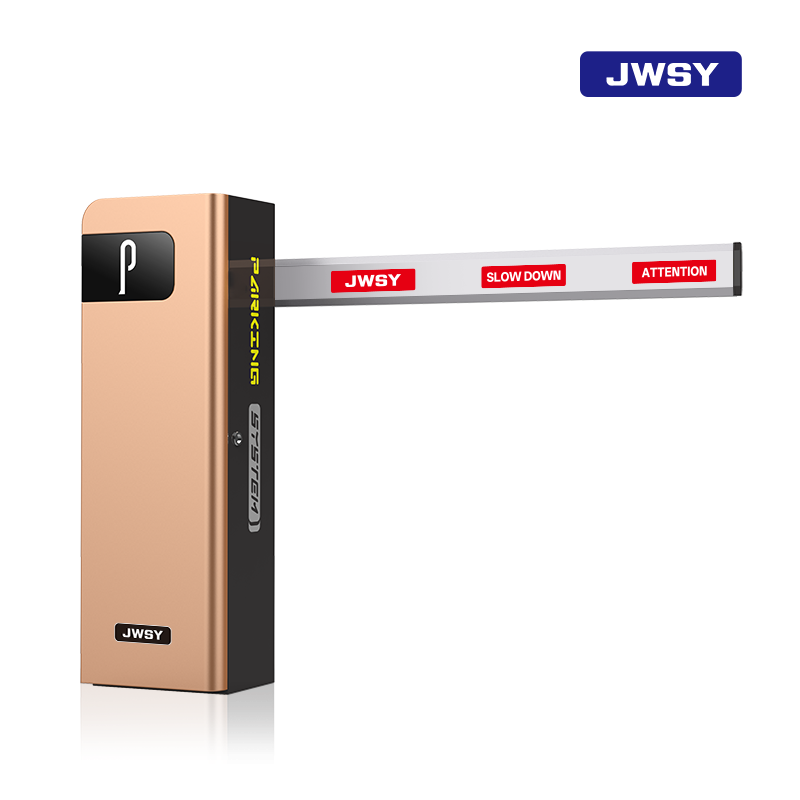

Military Smart Barrier Gate Gold Parking Lot Barrier Gate 120W

▋Product Features

1. Safety: Powered by 24V DC power supply, ensuring personal safety
2. Adjustable speed: independent adjustment of lifting and lowering speed
3. Stable operation: The movement adopts a DC brushless motor, which has a large output torque and small size. The speed can be adjusted arbitrarily
4. through the controller. When the falling and lifting rods are in place, deceleration buffering is achieved, making the brake rod smoothly in place
5. Quiet: The working noise is below 50db
6. Material: The main body of the movement is made of aluminum alloy material, manufactured by die-casting technology, with reliable mechanical
7. strength, beautiful appearance, precise size, and good heat dissipation.
8. Multiple protections: motor overcurrent, overload, short circuit protection, motor fault protection, power reverse protectionSupport external remote control input
9. Support for open position, close position, and status relay output
10. Supports RS232/RS485 serial communication
11. Support opening counting function and unmanned automatic closing function
12. Support high sensitivity anti smashing and rebound protection function

▋Product precautions

1. When the product is running, please confirm that there are no obstacles blocking the running path;
2. When the barrier gate is in operation, it is strictly prohibited to open the chassis door or cover to avoid accidents;
3. At the time of leaving the factory, the internal wiring of this gate has been prepared, and generally, users are not allowed to make changes. They only
4. need to connect the AC 220V power supply to the input terminal of the air switch;
5. The chassis shell must be grounded and a leakage protection switch must be installed at the power end;
6. When lowering the gate, it is strictly prohibited to place objects or have people standing or walking below the gate;
7. When there is a power outage at the barrier gate, the gate rod needs to be manually raised through the hand wheel at the end of the motor;
8. The barrier gate must be operated with a hand crank when the power is off;
9. When the product leaves the factory, the tension spring has been matched to a balanced state according to the length and weight of the brake rod. It is not allowed to increase or decrease the length and weight of the brake rod without authorization to avoid the danger of losing balance. If changes are required, professional personnel should be consulted for operation;
10. Without installing the tension spring on the machine, it is strictly prohibited to remove the tension spring when the brake lever is in a horizontal position;
11. When replacing or repairing the brake lever, it must be in the lifting position and in a power-off state. Remove the tension spring, and one person should hold the brake lever with their hand. The other person should use the hand wheel at the end of the hand cranked motor to lower the brake lever to a horizontal position before replacing it.
